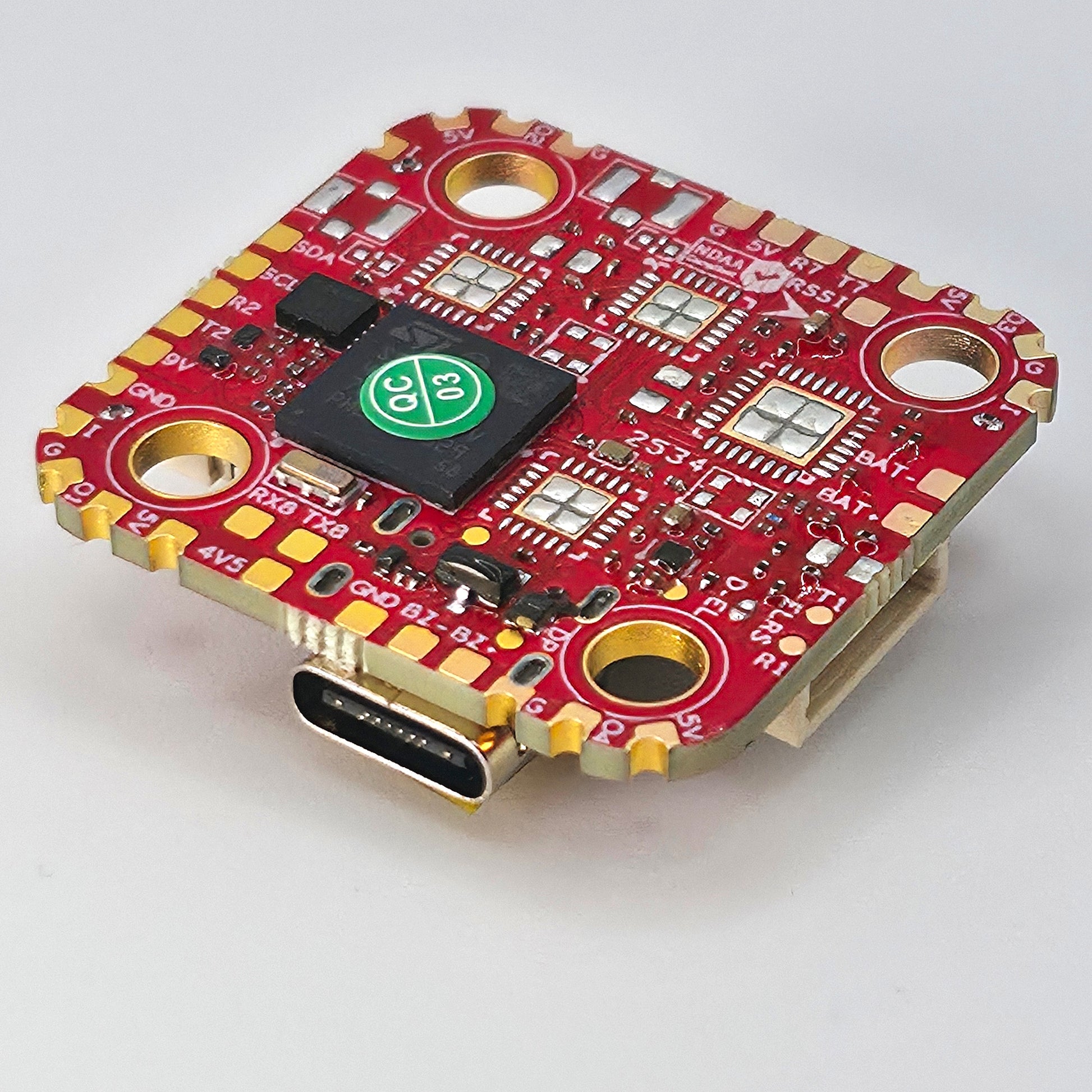

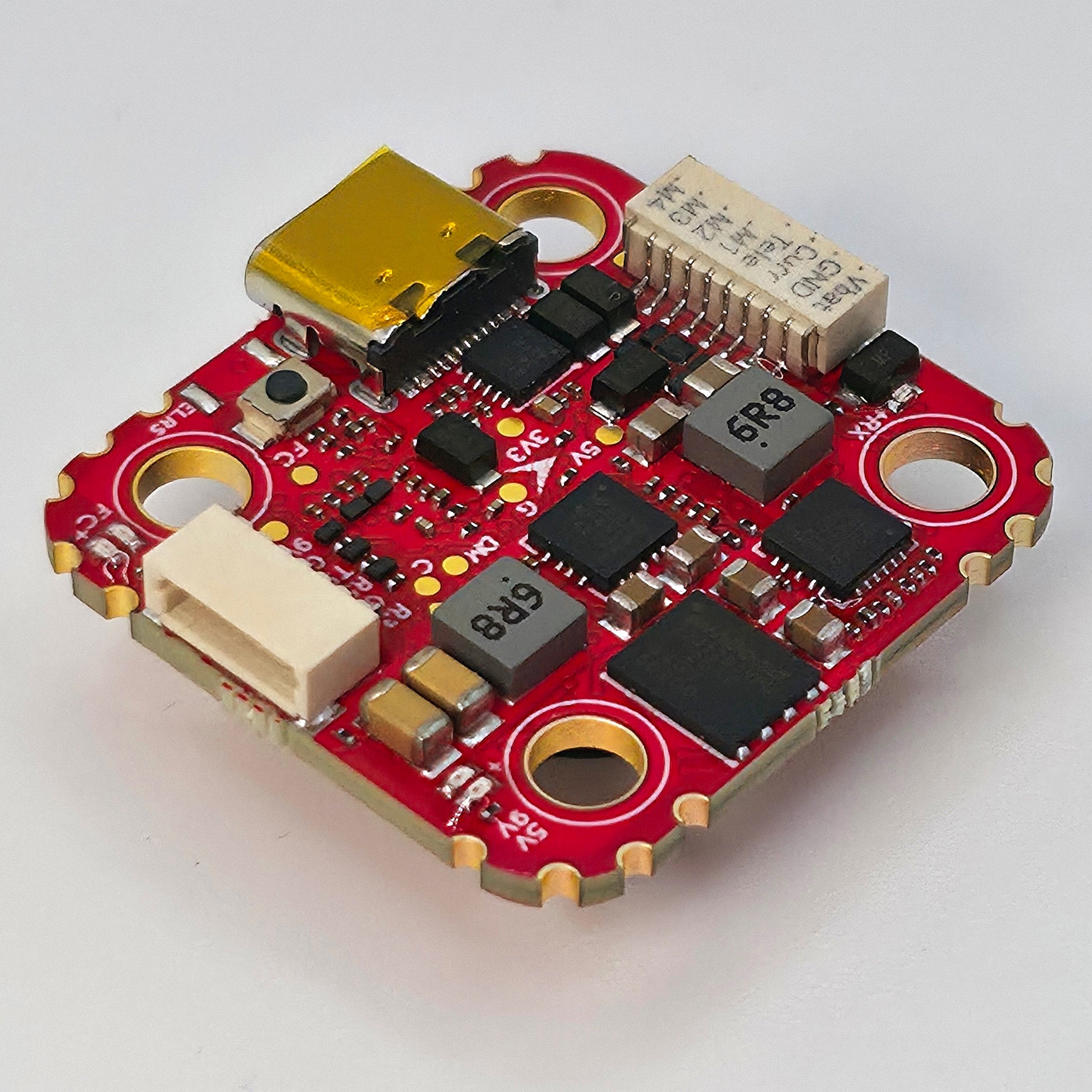

Divimath Mini Flight Controller - H743, ICM42688, NDAA Compliant

The Divimath Mini Flight Controller is a high-performance, NDAA-compliant flight controller designed specifically for modern digital FPV systems. Powered by the STM32H743 MCU running at 480 MHz, it delivers exceptional processing capability for demanding racing, freestyle, and enterprise applications. Manufactured in Thailand, this controller is fully compliant with U.S. NDAA requirements.

Optimized for digital video systems, the Divimath Flight Controller omits the analog OSD chip to save space and reduce cost. While it does not include onboard analog OSD, an external OSD module can be added if needed for analog use. This focused design ensures maximum compatibility and streamlined integration with Divimath, and other digital VTX systems.

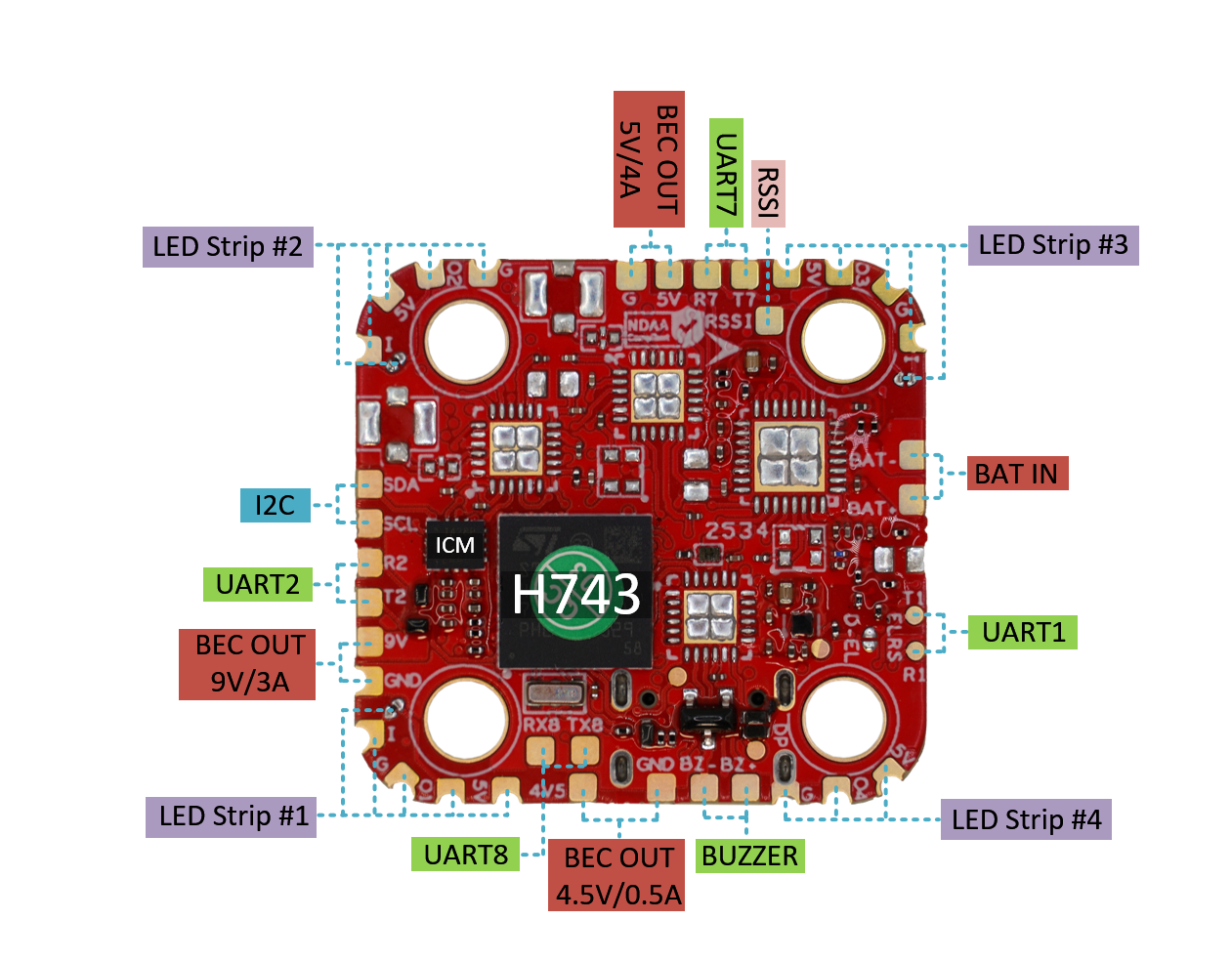

The board includes a switchable 9V/3A BEC output for powering digital transmitters, along with a 5V/4A output for LEDs and accessories. LED strip wiring is simplified—supporting both serial and parallel connections—to provide clean, consistent lighting without the clutter of traditional setups.

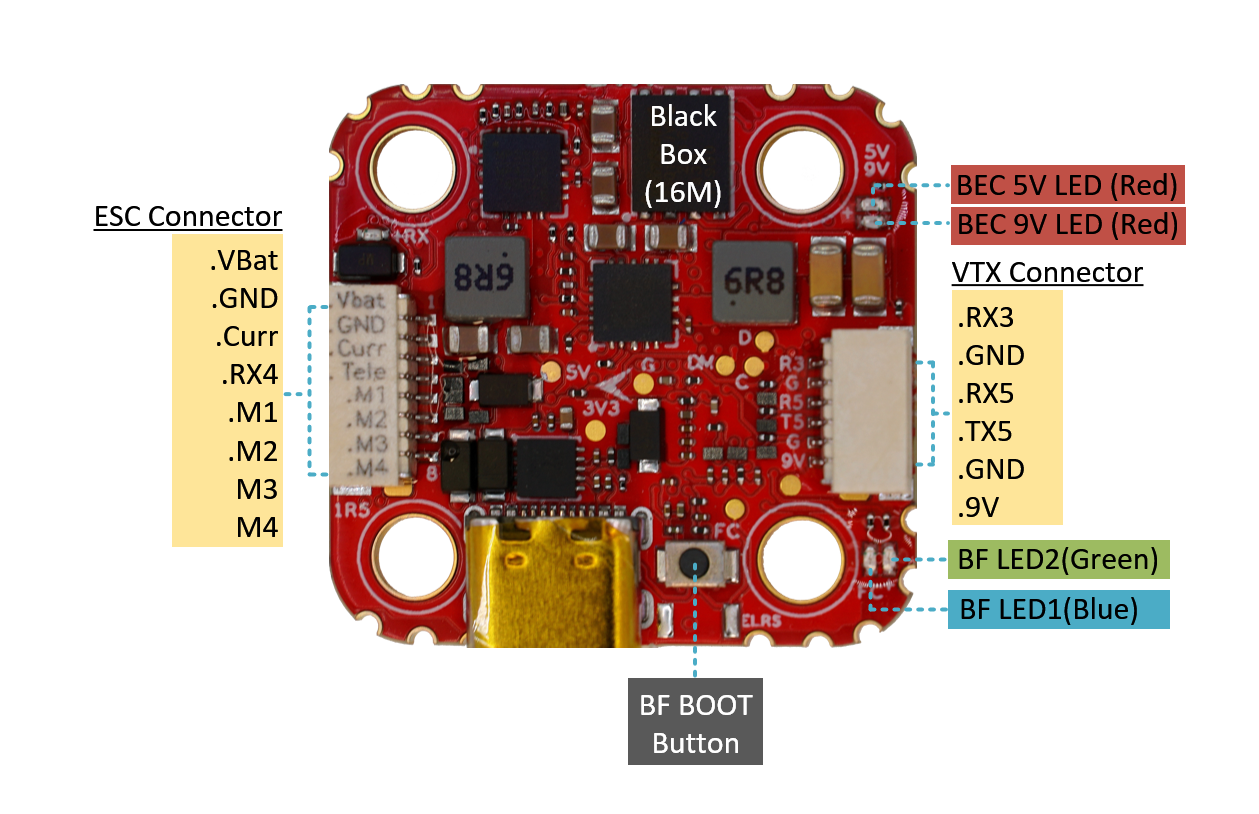

Featuring a compact 20×20 mm mounting pattern, the Divimath Flight Controller stacks neatly with Divimath and other digital VTX modules, minimizing build height while maintaining robust durability. The solderless ESC connector and included 8-pin cable make assembly fast, reliable, and easy to service in the field.

Built for reliability, performance, and compliance, the Divimath Flight Controller is ideal for pilots and system integrators seeking a powerful, future-proof, NDAA-compliant digital control platform.

Key Features

• STM32H743 MCU (480 MHz) for high-speed processing
• ICM42688 gyro for precise, low-noise flight performance
• Designed for digital FPV systems (no onboard analog OSD)
• Switchable 9V/3A and 5V/4A BEC outputs
• Compact 20×20 mm mounting pattern
• Solderless ESC connector for easy assembly
• Manufactured in Thailand – NDAA compliant

Specification

Includes

• 1× Divimath Flight Controller
• 5× Rubber Grommet (6.6 mm)
• 5× Rubber Grommet (8.0 mm)
• 1× ESC Cable (8-pin SH1.0, 30 mm)
• 1× 8-pin SH1.0 Connector
