(Pre-order) Divimath Dual-Band Analog VTX

The Divimath Dual-Band Analog VTX is a premium, high-performance, NDAA compliant video transmitter designed for serious FPV pilots who demand a competitive edge.

Pre-order with ETA of mid-August.

Unlike conventional transmitters that depend on the widely used Richwave RTC670x chipset, this VTX introduces a groundbreaking architecture. It supports a broad range of operating frequencies and features a unique RF output system routed through dual MMCX connectors, enabling seamless, split-second switching between two distinct frequency bands mid-flight. The result is exceptional signal resilience and a decisive advantage in environments affected by EW jamming.

At its core is an intelligent RF power calibration and control algorithm that ensures highly precise output. This advanced system continuously adjusts for heat in real time while providing robust thermal protection. With this level of efficiency, the VTX can operate at maximum power without the need for bulky heatsinks or active cooling, provided adequate airflow is present during flight.

The unit is thoughtfully designed for versatility in installation. Its slim, flat profile allows it to fit easily into tight or custom builds, and it comes with two premium MMCX-to-SMA adapters for quick and hassle-free setup.

For pilots operating at maximum power levels or using enclosed frames with limited airflow, an optional heatsink and fan module is available for additional thermal management. Purchase the optional Analog VTX Cooling Kit.

Specifications:

• Output Power: 25mW, 200mW, 400mW standard; additional power modes available through user unlock for authorized applications
• Frequency: 5.8GHz
• Video Input Format: CVBS (NTSC/PAL)
• Input Voltage: 6V-25V
• Dimensions: 37 × 28 × 10mm
• Weight: 8.7g
• Antenna Connectors: 2 × MMCX

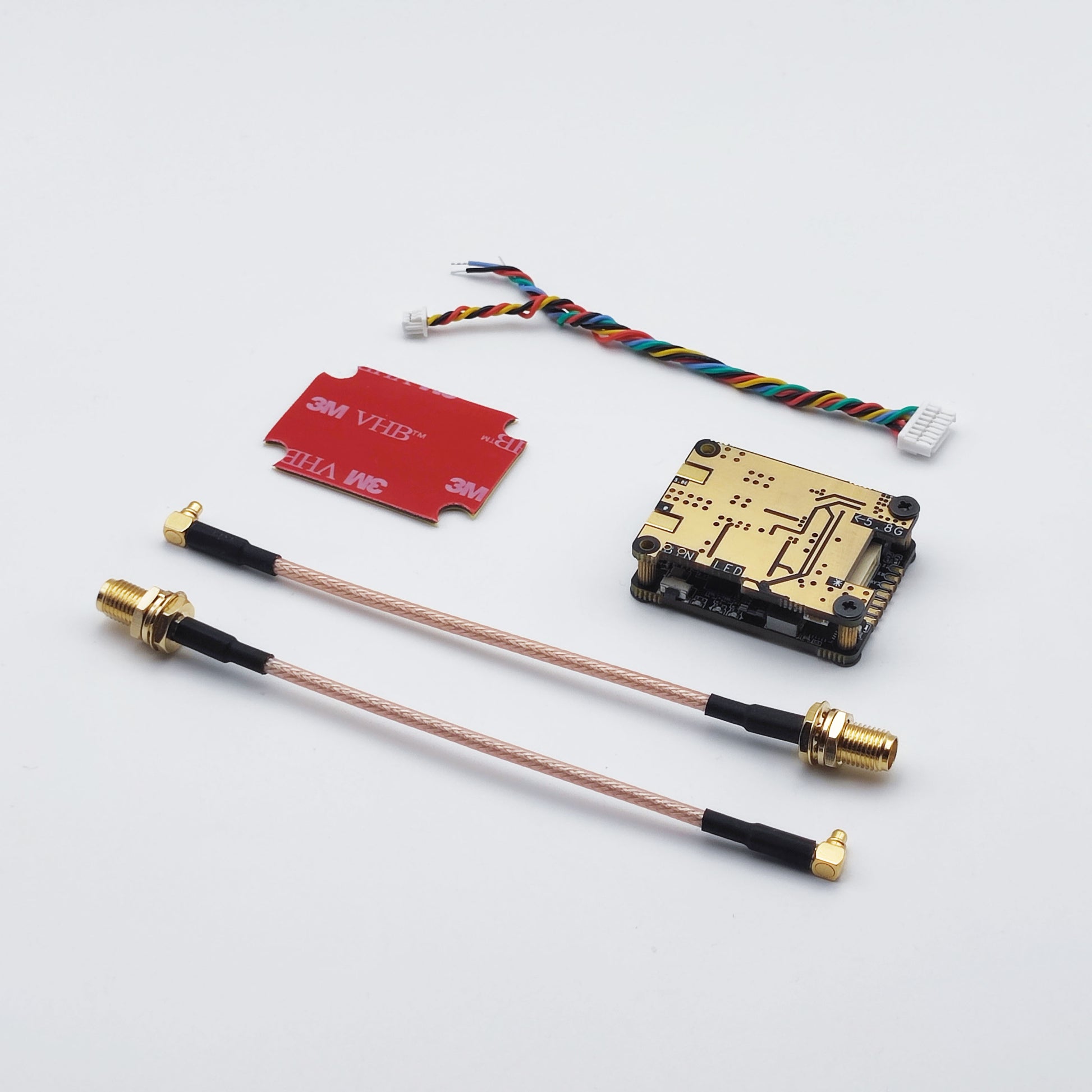

Includes:

• 1 × Divimath Dual-Band Analog VTX
• 2 × MMCX-to-SMA pigtails, 100mm
• Camera cable, 100mm
• VHB mounting tape

Compliance and Origin

NDAA compliant
Country of Origin: Thailand
